Datasheet

TriBand Sixteen Port Antenna

16C65R-BWH8A

Eight foot (96”) tall, 13.1” wide 16 port TriBand antenna designed for stealth/flagpole applications
With the custom TM-02 mounting kit (sold separately), 3 antennas on a minimum Ø4.0” (Ø101.6 mm) pole will fit within a shroud ID of Ø24.0” (Ø609.6 mm) and on a maximum Ø10.75” (Ø273.1 mm) pole will fit within a shroud ID of Ø31.0” (Ø787.4 mm)
Innovative Low, Mid and High Band Array configuration based on patented decoupled element technology which allows eight dual polarization arrays of different frequency bands to be collocated all in a narrow width enclosure, an Industry First
Four wide Low Band ports covering 698-896 MHz, eight wide Mid Band ports covering 1695-2180 MHz and four high band ports covering 3300-4000 MHz in a single antenna
Full Spectrum Compliance for 698-896 MHz / 1695-2180 MHz / 3300-4000 MHz
LTE Optimized FBR, SPR and Boresight/Sector XPD Performance, essential for today’s LTE Data Networks
Exceeds minimum PIM performance requirements
Equipped with 4 RET-T17iG3-M, internal integrated AISG 2.0 compliant Remote Electrical Tilt (RET) Controllers
Equipped with 4.3-10 connectors for low and mid bands and Nex10 connectors for the high band

Overview

The CCI 16-Port 65° Stealth MultiBand array is a Sixteen-port antenna, with four wide low band (LB) ports covering 698-896 MHz, eight wide mid band (MB) ports covering 1695-2180 MHz and four high band (HB) ports covering 3300-4000 MHz. The antenna provides the capability to deploy Dual 4×4 Multiple-input Multiple-output (MIMO) in the MB and 4X4 MIMO across the High and Low band ports. The CCI 16-Port 65° MB ports have independent tilt control between first and second set of 4X4 MIMO MB antenna arrays.

In this four RET configuration, the 1st RET is dedicated for the four LB ports. The 2nd RET is dedicated to the first 4X4 MIMO MB ports, the 3rd RET is dedicated to the second 4X4 MIMO MB ports and the 4th RET is dedicated to the HB ports. This RET arrangement allows for complete flexibility in coverage control between first and second mid band antenna arrays.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

4×4 MIMO Low Band, Dual 4×4 MIMO for the Mid Band and 4×4 MIMO for the High Band
With CCI’s TriBand antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical

Ports	4 × Low Band Ports for 698-896 MHz		4 × High Band Ports for 3300-4000 MHz
Frequency Range	698-806 MHz	824-896 MHz	3300-4000 MHz
Gain (Peak)	13.3 dBi	13.4 dBi	17.8 dBi
Gain (Average)*	13.0 dBi	12.9 dBi	16.6 dBi
Azimuth Beamwidth (-3dB)	67°	66°	59°
Elevation Beamwidth (-3dB)	18.3°	15.8°	4.6°
Electrical Downtilt	2° to 10°	2° to 10°	2° to 10°
Elevation Sidelobes (1st Upper)	< -18 dB	< -19 dB	< -18 dB
Front-to-Back Ratio @ 180°	> 35 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 25 dB	> 25 dB	> 23 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 24 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	100 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1. All specifications are subject to change without notice.

Ports	8 × Mid Band Ports for 1695-2180 MHz
Frequency Range	1695-1850 MHz	1850-1910 MHz	1910-2180 MHz
Gain (Peak)	16.4 dBi	16.7 dBi	16.7 dBi
Gain (Average)*	15.6 dBi	16.0 dBi	16.0 dBi
Azimuth Beamwidth (-3dB)	64°	60°	63°
Elevation Beamwidth (-3dB)	8.1°	7.5°	7.2°
Electrical Downtilt	2° to 10°	2° to 10°	2° to 10°
Elevation Sidelobes (1st Upper)	< -16 dB	< -18 dB	< -17 dB
Front-to-Back Ratio @180°	> 35 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 20 dB	> 22 dB	> 25 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	250 watts	250 watts	250 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1. All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D)	96.0×13.1×8.4 in (2438×332×214 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load¹	231 lbf @ 100 mph 1027 N @ 161 kph
Side Wind Load¹	74 lbf @ 100 mph 327 N @ 161 kph
Effective Projective Area (EPA), Front¹	9.1 ft² (0.9 m²)
Weight *	67.9 lbs (30.8 kg)
RF Connector	12 × 4.3-10 female & 4 × NEX10 female
Mounting Pole	4 -10.75 in OD (10.2 - 27.3 cm OD)
¹Windload values calculated using CFD analysis * Weight excludes mounting

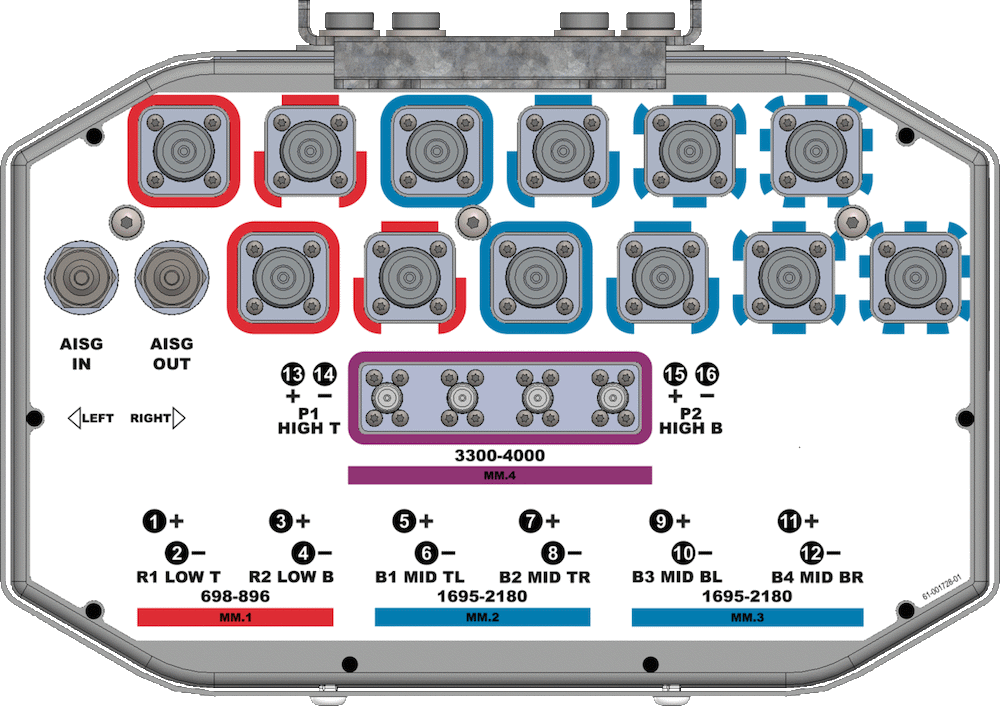

Bottom View

Connector Spacing

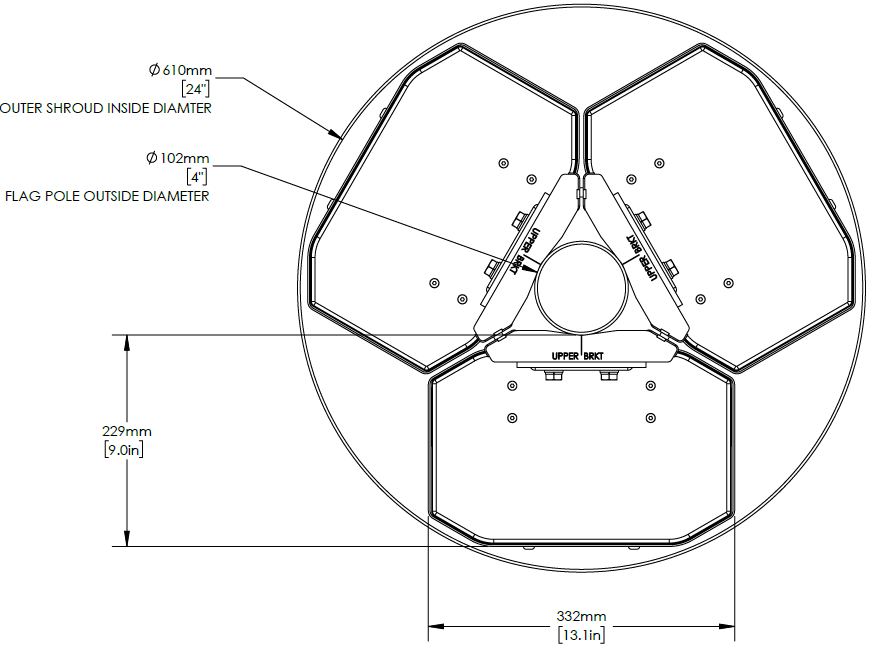

24" Shroud Top View

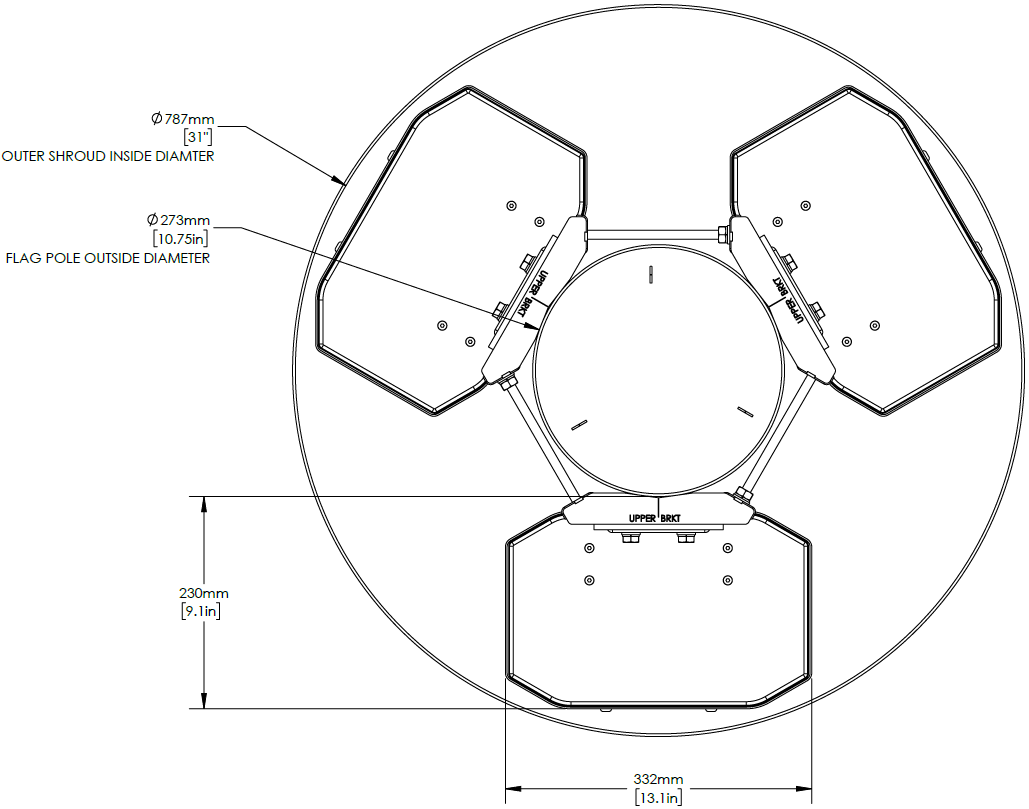

31" Shroud Top View

RET to Arrray Configuration

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

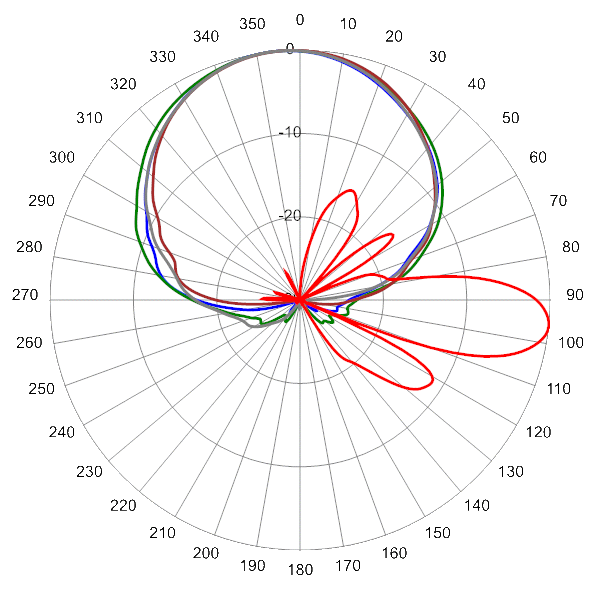

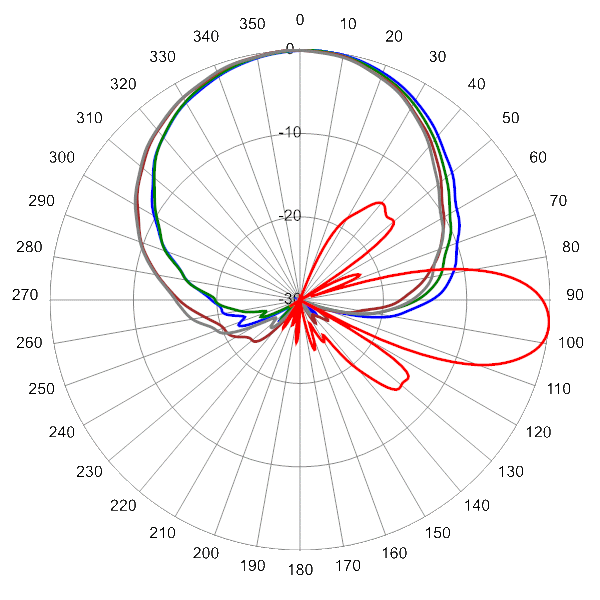

	728 MHz Azimuth with Elevation 6°	880 MHz Azimuth with Elevation 6°

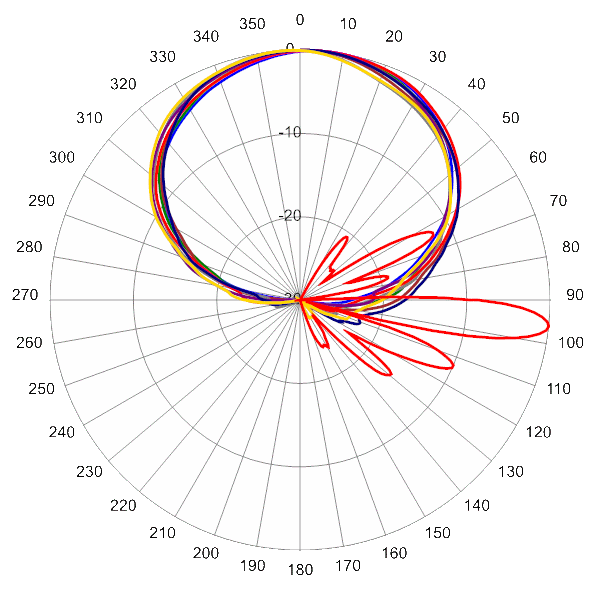

	1920 MHz Azimuth with Elevation 6°	2110 MHz Azimuth with Elevation 6°

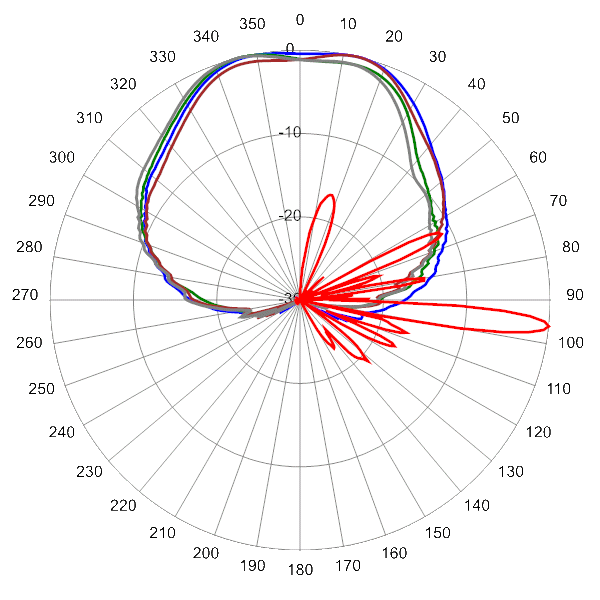

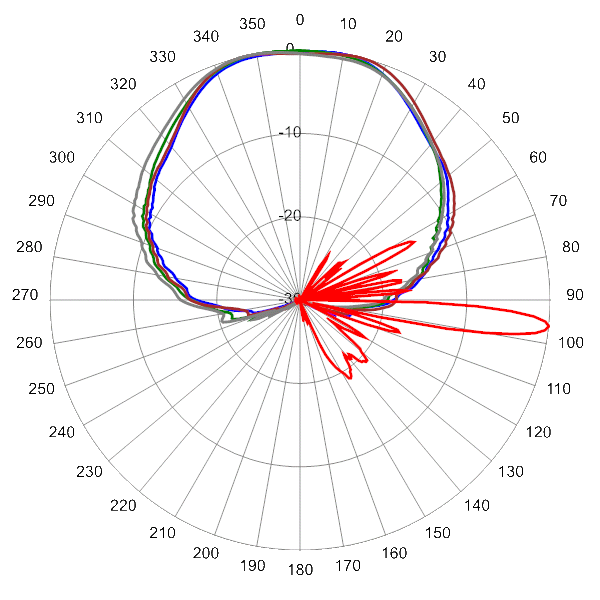

	3425 MHz Azimuth with Elevation 6°	3700 MHz Azimuth with Elevation 6°

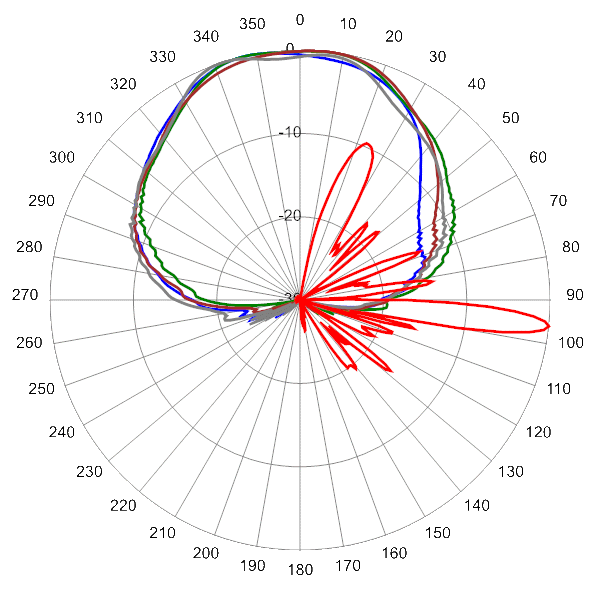

	3900 MHz Azimuth with Elevation 6°

TM-02	TM-02 Mounting Kit with fixed 0° mechanical tilt
AISGC-M-F-10FT	10 Foot (3 M) Male/Female AISG cable
SCU-AISG-P	Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	16C65R-BWH8A Connector Spacing Diagram
	16C65R-BWH8AA Antenna/RET Config Diagram
	TM-02 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

16C65RBWH8A: Text/Planet Format - Default Azimuth

Parts & Accessories

16C65R-BWH8AA	Eight foot (2.4 m) TriBand antenna with 65° azimuth beamwidth, 4.3-10 female connectors and NEX10 female connector, 4 factory installed T17iG3-M RET actuators
TM-02	Mounting bracket kit (top and bottom) with fixed 0° mechanical tilt
AISGC-M-F-xFT AISGC-M-F-10FT	10 Foot (3 M) Male/Female AISG cable
T17iG3-M	(This is an internal part and is not orderable) Click link for datasheet and Firmware

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55032
Immunity	EN 55035
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27:2008, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions
