| Highband Quasi-Omni Antenna | SCA360F-W2A | |||

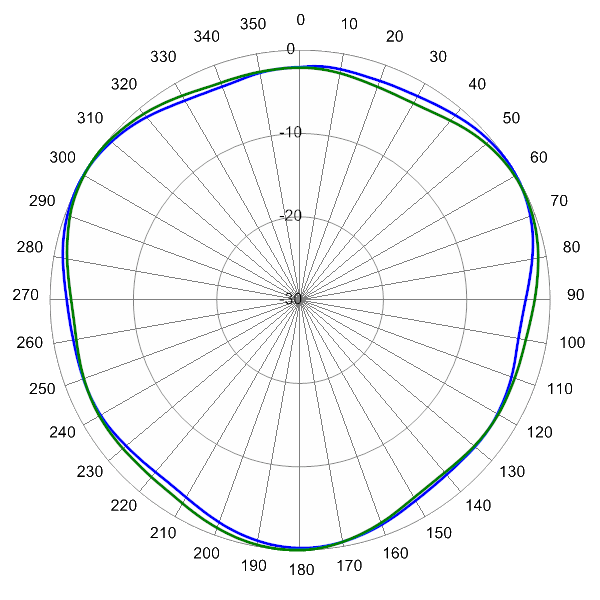

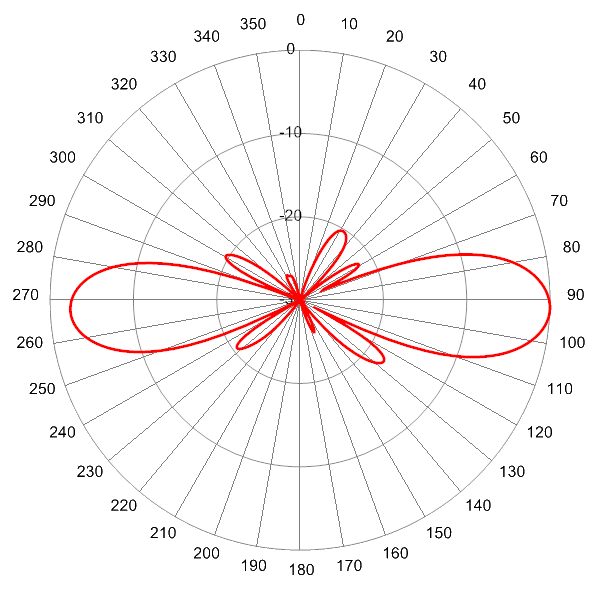

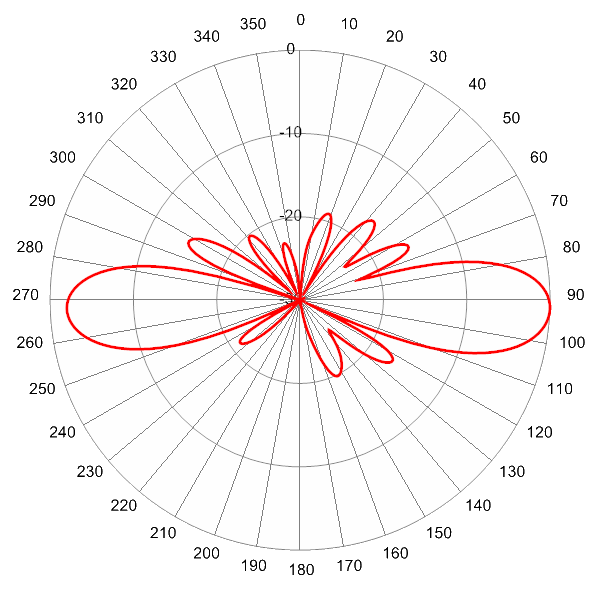

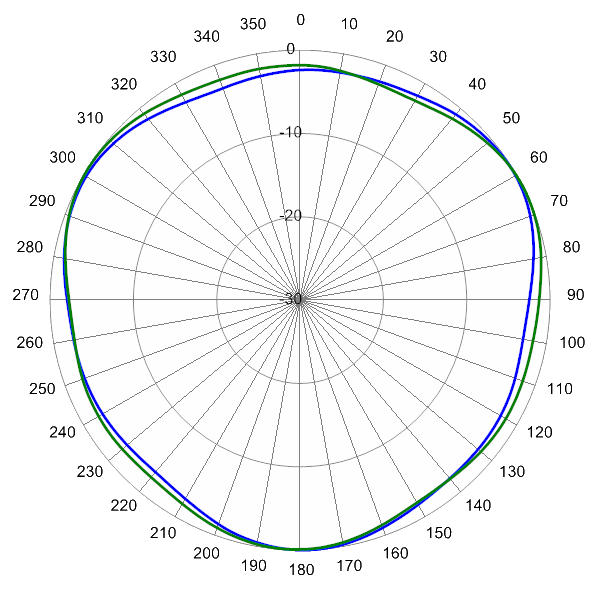

Pattern Viewer |
|
Mechanical
| Dimensions (L×D) | 20.5 × 6.6 in (520 × 168 mm) |
| Survival Wind Speed | > 150 mph (> 241 kph) |
| Front Wind Load | 17 lbs (76 N) @ 100 mph (161 kph) |
| Equivalent Flat Plate Area | 0.7 ft2 (0.1 m2) |
| Weight * | 4.8 lbs (2.1 kg) |
| Connector (RF) | 2 × 4.3-10 female |
| Connector (GPS) | 1 x Type "N" female |
| Mounting Pole (MBC-02) | 2 to 2.5 in (50 to 63 mm) |
| Mounting Pole (MBC-05) | 4 in and larger (100 mm and larger) |
| Mounting Pole (MBC-09) | 2 to 5 in (50 to 125 mm) |
| * Weight excludes mounting |

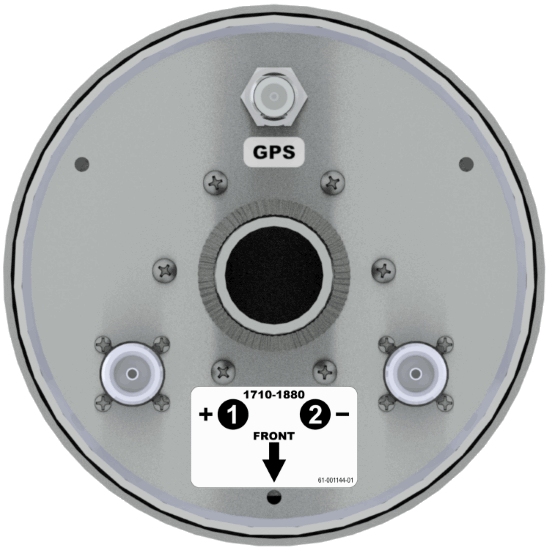

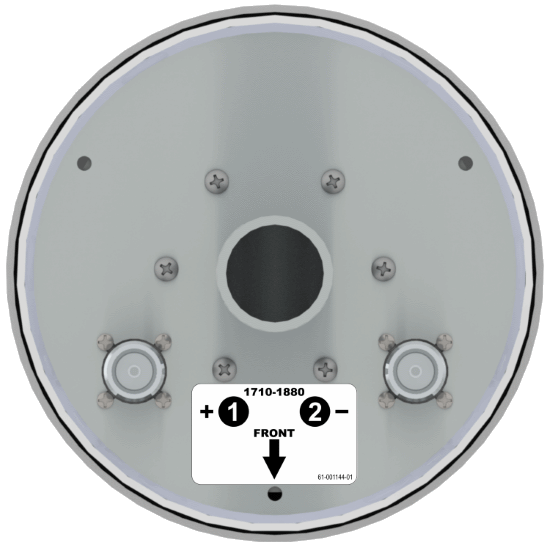

| Bottom View | Without GPS option SCA360F-W2AA | With GPS option SCA360F-W2AB |
 |
 |
| Connector Spacing | Without GPS option SCA360F-W2AA | With GPS option SCA360F-W2AB |
 |
 |
| MBC-02 | MBC-02 Clamp kit, Pipe range 1 - 2.5 in. | |
| MBC-09 | MBC-09 Clamp kit, Pipe range 2 - 5 in (50 - 125 mm) | |
| MBC-05 | MBC-05 Pole top mounting kit suitable for 4" (10 cm) and larger |
