| Triple Mount Cluster Bracket Kit | TM-02 | |||
 |
|
Mechanical
| Weight | 6.6 lbs (3.0 kg) |
| Fastener Size | M8 |
| Installation Torque | 15 ft·lb (20 N·m) |
| Cluster Bracket Pitch (Vertical) | 66.2 in (1681 mm) for 14C65R-BUH5A and 102.5 in (2604 mm) for 16C65R-BUH8A |
| Mechanical Tilt Adjustment | None |
 |
 |
|

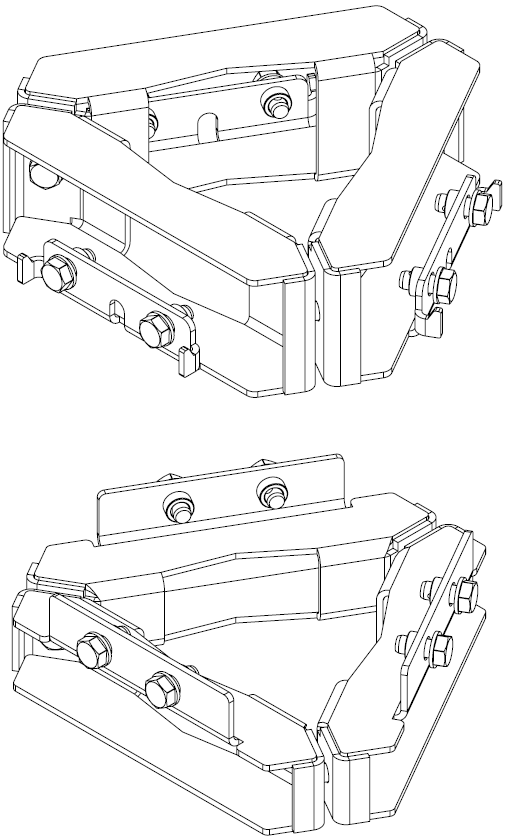

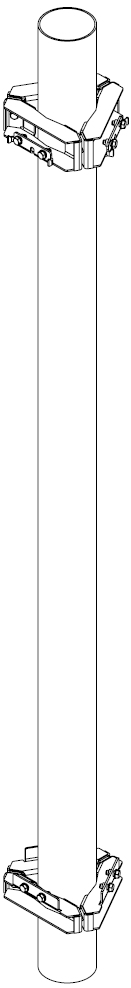

| TM-02 Bracket | TM-02 Mounting Brackets (on 4" Pole) |
 |
 |
|

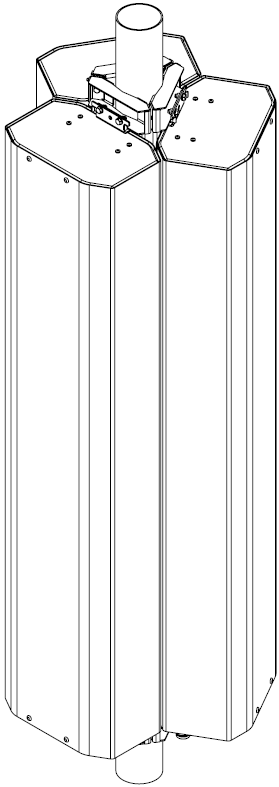

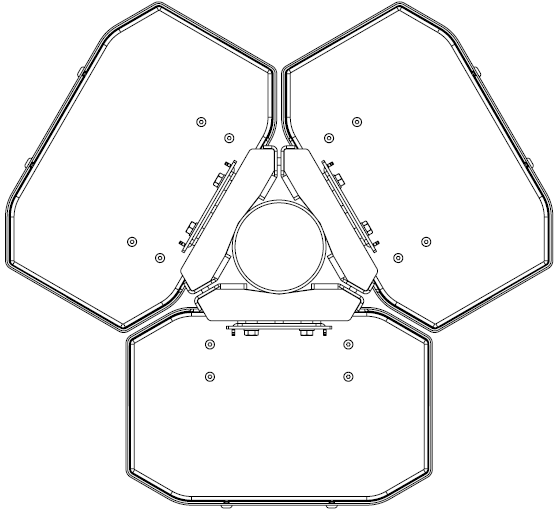

| 3 - 65° Antennas Mounted on Pole using TM-02 Brackets (ISO and Top Views) | ||
 |
|

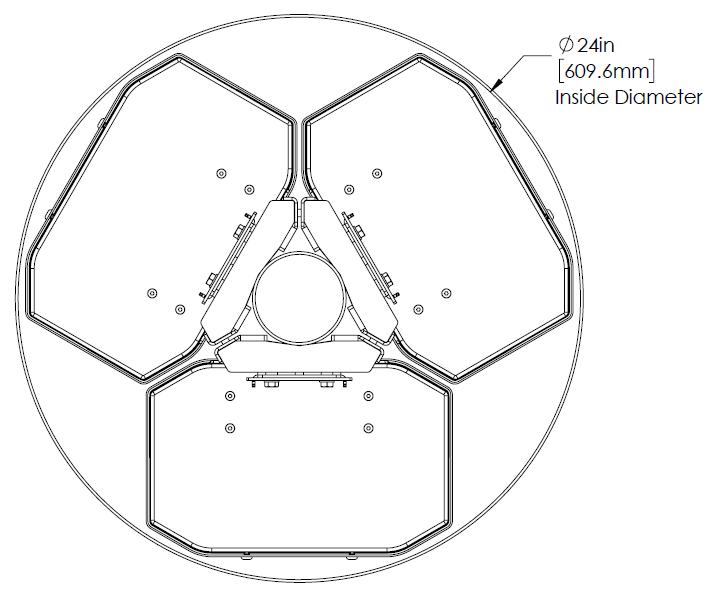

| 3 - 65° Antennas Mounted on Pole inside 24" radome |
|
|
